Connect Your Custom Storefront

Audience: Tenant admins, engineers, and DevOps connecting a custom customer website to Ailaaj One.

Purpose: Create a Storefront API key, set scopes and routing, wire environment variables, and verify the connection.

Companion doc: Integration guide — public API flows, auth headers, checkout, and product detail fields.

Issue a Storefront API key in Admin → Platform → External APIs, bind checkout routing, and point your shop at the live /api/storefront endpoints.

What you are connecting

Layer	Where it runs	Role
Ailaaj One Storefront API	`{your-ailaaj-one-host}/api/storefront`	Catalog, cart quote, checkout, customer accounts
Your customer website	Your domain (e.g. Cloudflare Workers)	UI — calls the API from SSR/server, not from the browser for secrets
OMS	Same Ailaaj One tenant	Orders created with `orders.source = api`

Every request includes:

tenant_id=<your-tenant-uuid> (query string)
X-API-Key: <storefront-api-key> (tenant API key from External APIs)

Customer sessions (order history, profile) also send X-Storefront-Session: <token> after login.

Step 1 — Open External APIs

In Ailaaj One, go to Admin → Platform → External APIs (/app/settings/external-apis).

You will see existing keys and a Create API Key button.

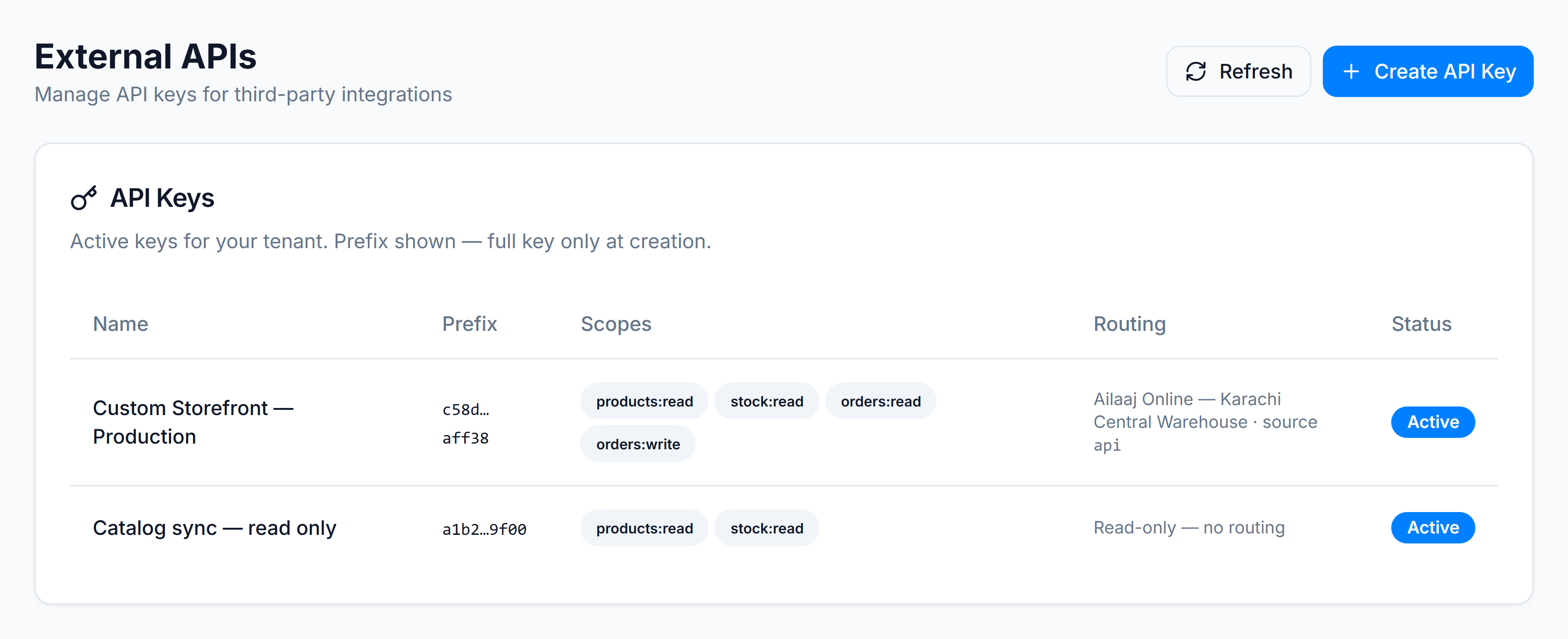

External APIs page listing active storefront API keys with scopes and routing

Step 2 — Create an API key and select scopes

Click Create API Key. Give the key a clear name (e.g. Custom Storefront — Production).

For a full custom storefront (browse, cart, checkout, accounts), enable all four active scopes:

Scope	What it unlocks
`products:read`	Categories, product list, product detail (PDP)
`stock:read`	Cart quote — validates stock and pricing
`orders:read`	Order tracking and logged-in order history
`orders:write`	Place checkout orders

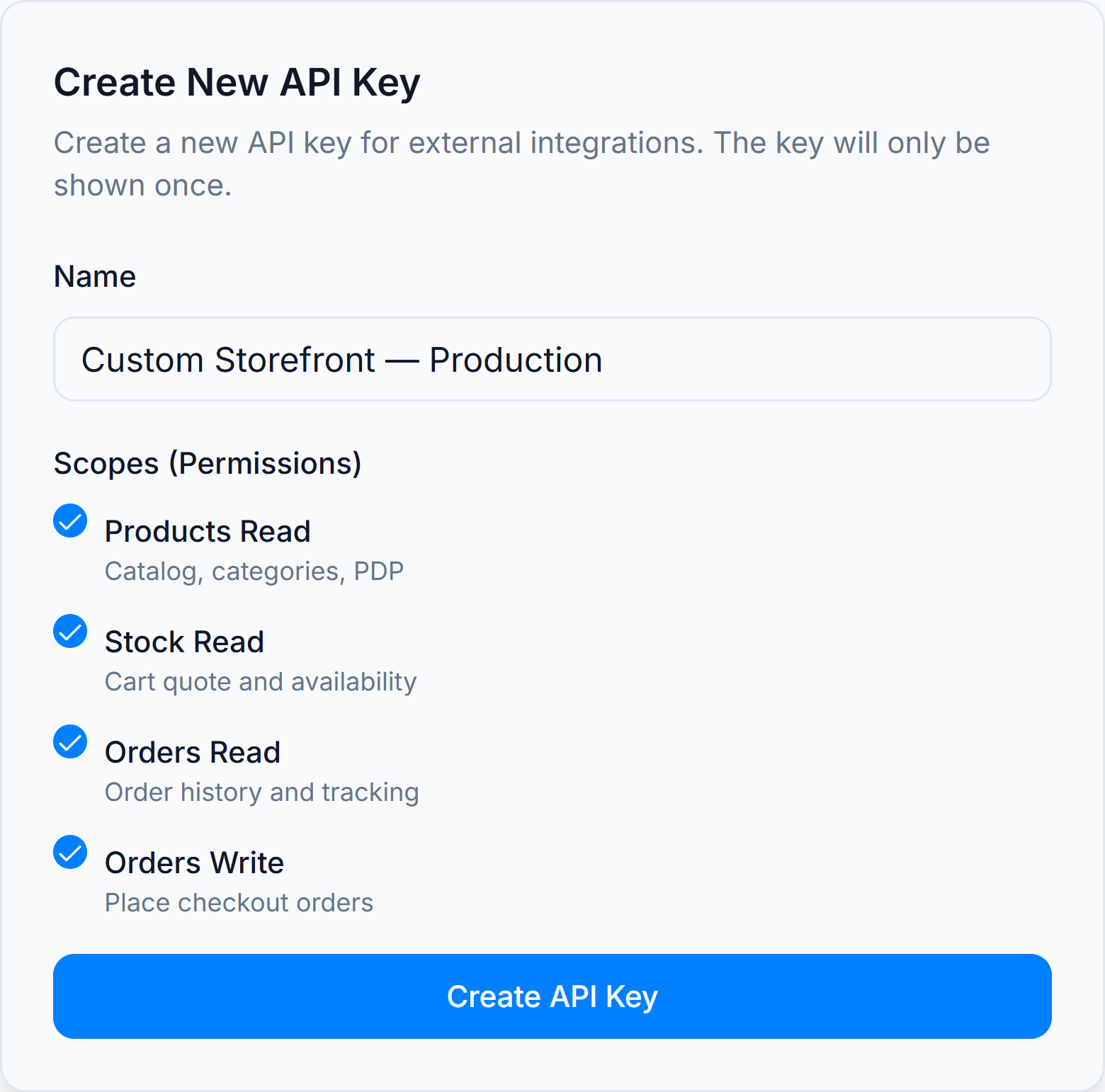

Create API Key dialog with products, stock, and orders scopes selected

Copy the full key when shown — it is only displayed once. Store it in your deployment secrets (Vercel, Cloudflare, .env locally).

Read-only keys: If you only sync catalog to another system, products:read + stock:read is enough — routing is optional.

Step 3 — Set routing defaults (required for checkout)

When orders:write is selected, routing defaults are required. They tell OMS which store, warehouse, shipment method, and payment methods this key uses for every API order.

Field	Purpose
Default store	OMS store that owns the order
Default warehouse	Stock reservation and fulfilment source
Order source channel	Set to Custom Storefront (`api`) — maps to `orders.source = api`
Default shipment method	Delivery option and shipping cost at checkout
Prepaid / COD payment	Payment methods offered at checkout

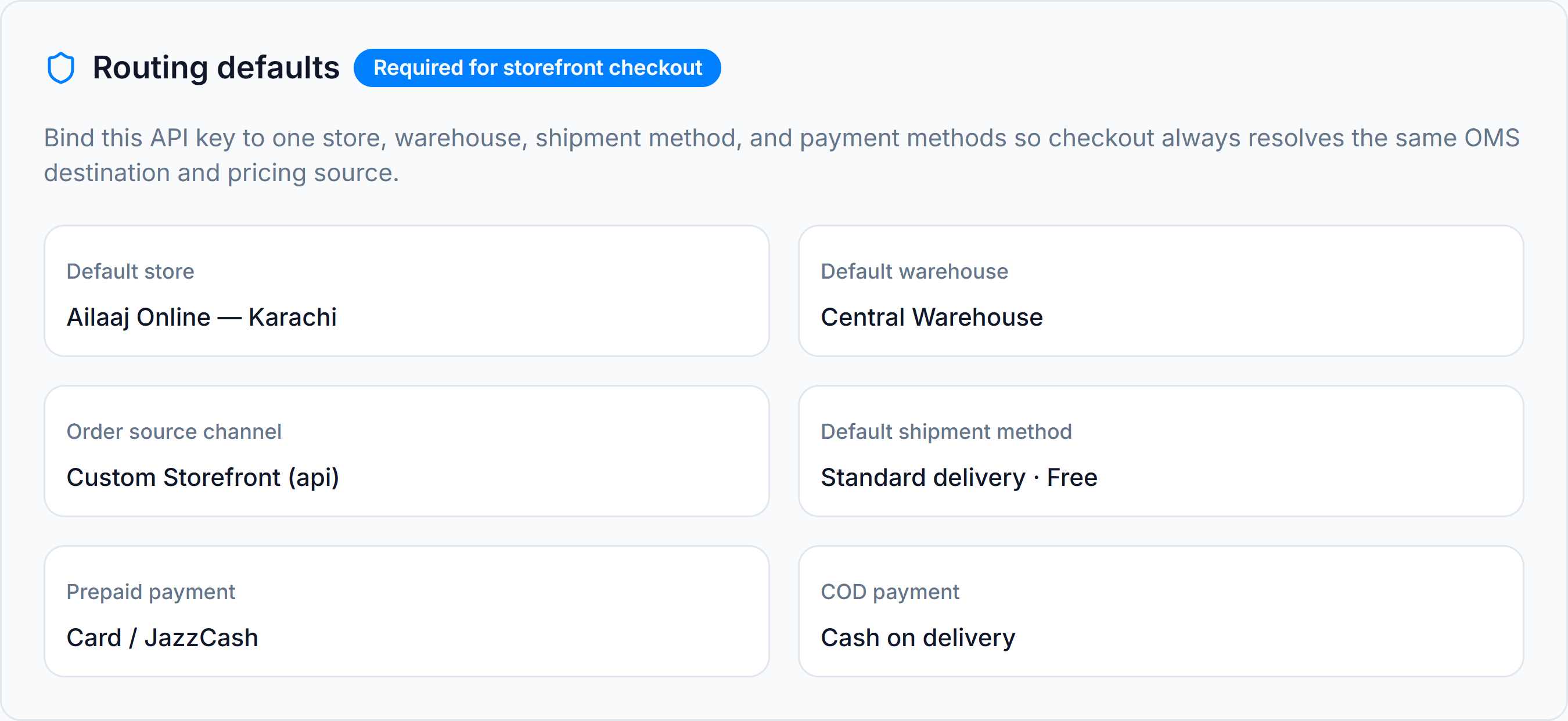

Routing defaults bound to store, warehouse, api order source, and payment methods

After saving, GET /api/storefront/config returns these defaults (including shipment cost) so your checkout page does not hard-code OMS IDs.

Step 4 — Wire your custom storefront platform

Point your customer website at the Storefront API. Example environment variables:

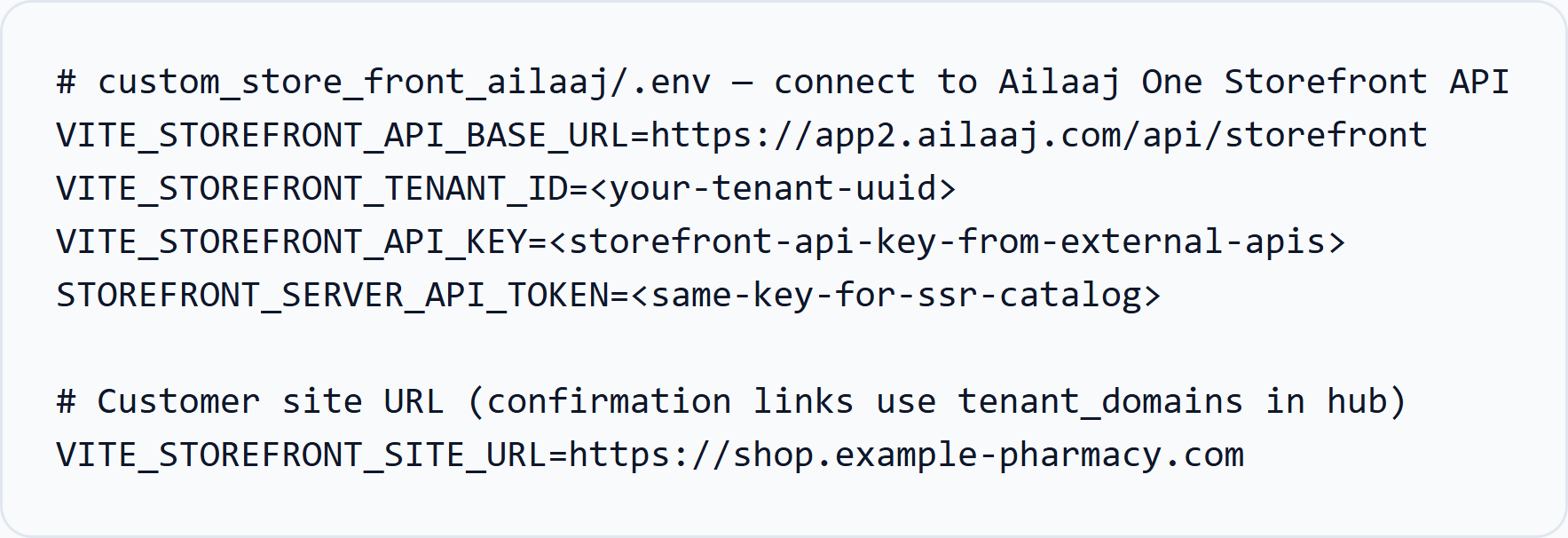

Environment variables connecting custom storefront to Storefront API

Variable	Used by	Value
`VITE_STOREFRONT_API_BASE_URL`	Client + server	`https://{your-ailaaj-one-host}/api/storefront`
`VITE_STOREFRONT_TENANT_ID`	All calls	Your tenant UUID
`VITE_STOREFRONT_API_KEY`	Browser-safe catalog calls (if proxied)	API key — prefer server proxy in production
`STOREFRONT_SERVER_API_TOKEN`	SSR / Workers server	Same API key for cart quote, checkout, auth
`VITE_STOREFRONT_SITE_URL`	Confirmation links	Public shop URL

Security: Never expose the API key in client bundles for write routes. Call catalog, cart, and checkout from your server or SSR layer, not from public browser JavaScript.

Step 5 — Verify the connection

Run these checks with your key and tenant (replace placeholders):

Config (routing loaded)

curl -s "https://{your-ailaaj-one-host}/api/storefront/config?tenant_id=<your-tenant-uuid>" \
  -H "X-API-Key: <your-api-key>"

Categories

curl -s "https://{your-ailaaj-one-host}/api/storefront/categories?tenant_id=<your-tenant-uuid>" \
  -H "X-API-Key: <your-api-key>"

Product list

curl -s "https://{your-ailaaj-one-host}/api/storefront/products?tenant_id=<your-tenant-uuid>&limit=5" \
  -H "X-API-Key: <your-api-key>"

Expect { "success": true, "data": { ... } }. A 401 or 403 usually means a wrong key, missing scope, or wrong tenant_id.

Storefront API endpoint catalog

Base path: /api/storefront. All routes require tenant_id and a valid tenant API key unless noted.

Public catalog (server or BFF; scope `products:read`)

Method	Path	Description
GET	`/config`	Checkout routing defaults bound to this API key
GET	`/categories`	Top nav + subcategories + collection tree
GET	`/categories/[slug]`	Single storefront category detail
GET	`/products`	Listing — `category_slug`, `sub_slug`, `q`, filters, pagination
GET	`/products/[slug]`	Product detail — overview, uses, side effects, related, alternates
GET	`/products/[slug]/alternates`	Ingredient-matched alternates
GET	`/products/[slug]/reviews`	Product reviews (when enabled)
GET	`/product-search`	Fast search (optional Redis cache)
GET	`/product-filters`	Facets for PLP filters
GET	`/brands`	Brand list for filters

Cart and checkout (server trust; scopes `stock:read`, `orders:write`)

Method	Path	Scope	Description
POST	`/cart/quote`	`stock:read`	Validate lines, stock, and pricing before checkout
POST	`/orders`	`orders:write`	Create order — uses routing defaults from the key
POST	`/orders/track`	`orders:read`	Track by order number (guest)
GET/POST	`/orders/confirmation`	—	Customer magic-link confirmation (`order_number`, `token`)

Customer auth (server; key required)

Method	Path	Description
POST	`/auth/register`	Create `api`-channel customer account
POST	`/auth/login`	Email, phone, or `user_name` + password
POST	`/auth/logout`	Revoke session (`X-Storefront-Session`)
GET	`/auth/me`	Current customer
POST	`/auth/password-reset/request`	Send 6-digit OTP email
POST	`/auth/password-reset/confirm`	Confirm OTP + set new password

Logged-in customer (`X-Storefront-Session` + key)

Method	Path	Scope	Description
GET	`/me`	—	Account summary
PATCH	`/me/profile`	—	Update name, email, phone
PATCH	`/me/password`	—	Change password
GET/POST/PATCH/DELETE	`/me/addresses`	—	Saved addresses
GET	`/me/orders`	`orders:read`	Order history (`source = api`)
GET	`/me/orders/[id]`	`orders:read`	Order detail by UUID or `ORD-*`
GET/POST	`/me/prescriptions`	—	Prescription uploads
POST	`/me/prescriptions/upload-url`	—	Presigned upload URL
GET/PATCH	`/me/notifications`	—	Email / WhatsApp preferences

How requests flow

sequenceDiagram
  participant Browser
  participant YourSite as Your storefront SSR
  participant API as /api/storefront
  participant OMS as OMS / Postgres

  Browser->>YourSite: Browse / add to cart
  YourSite->>API: GET products, categories (X-API-Key)
  API->>OMS: Tenant-scoped catalog
  OMS-->>API: JSON
  API-->>YourSite: success envelope
  YourSite-->>Browser: HTML / JSON

  Browser->>YourSite: Checkout submit
  YourSite->>API: POST cart/quote, POST orders
  API->>OMS: Create order source=api
  OMS-->>API: ORD-*
  API-->>YourSite: Order confirmation
  YourSite-->>Browser: Thank-you / redirect

Admin setup checklist

Before go-live, confirm in Ailaaj One:

Storefront Categories tab — public menu tree and slugs configured
External API key — four scopes + routing defaults saved
Shipment methods — API-enabled method tied to the key
Payment methods — prepaid and COD mapped on the key
Tenant domain — tenant_domains row for confirmation link host
SMTP / WhatsApp — hub env for password reset and order notifications (see Integration guide)

Doc	Topic
Integration guide	Architecture, auth, checkout, Rx, and PDP API
Release notes v1.1.0	Latest storefront changes
Order Management	Fulfilment after API orders land in OMS
